Multi Cavity Mould
The multi-cavity mould has been approval for transfer after T2.
No. of Cavities:96
Resin Material: PP
Cavity & Core Steel: 1.2083(HRC48-52)
Mouldbase Steel: 1.2085
Injection System: Moldmaster 12 open gate to cold runner to sub gate
Building Standard: EQV Hasco Metric Standard Component

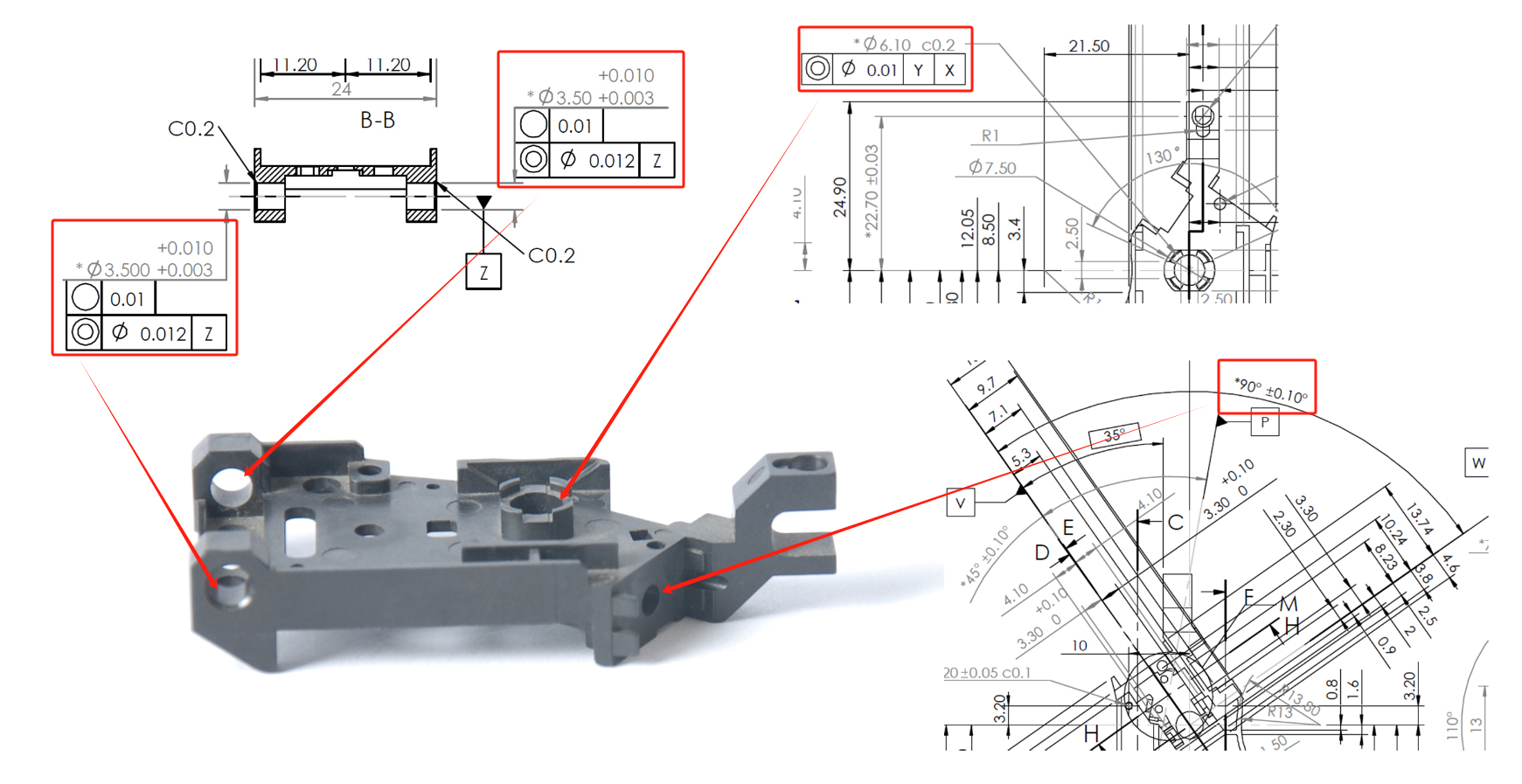

Precision Mould
Actual product coaxiality tolerance 0.005~0.006,Diameter tolerance 0.002~0.003,Angle tolerance qualified.
No. of Cavities:1
Resin Material: PPS
Cavity & Core Steel: S136(HRC48-52)
Mouldbase Steel: A/B P20,Other S50C
Injection System: Cold Runner Side Gate
Building Standard: EQV DME Imperial Standard Component
2K Mould
No. of Cavities:1+1 (1+1)
Resin Material: PC/ABS + PC Transparent
Cavity & Core Steel: 1.2343(HRC48-52)
Mouldbase Steel: P20
Injection System: Incoe 10 open gate to cold runner to sub gate
Building Standard: EQV Hasco Metric Standard Component

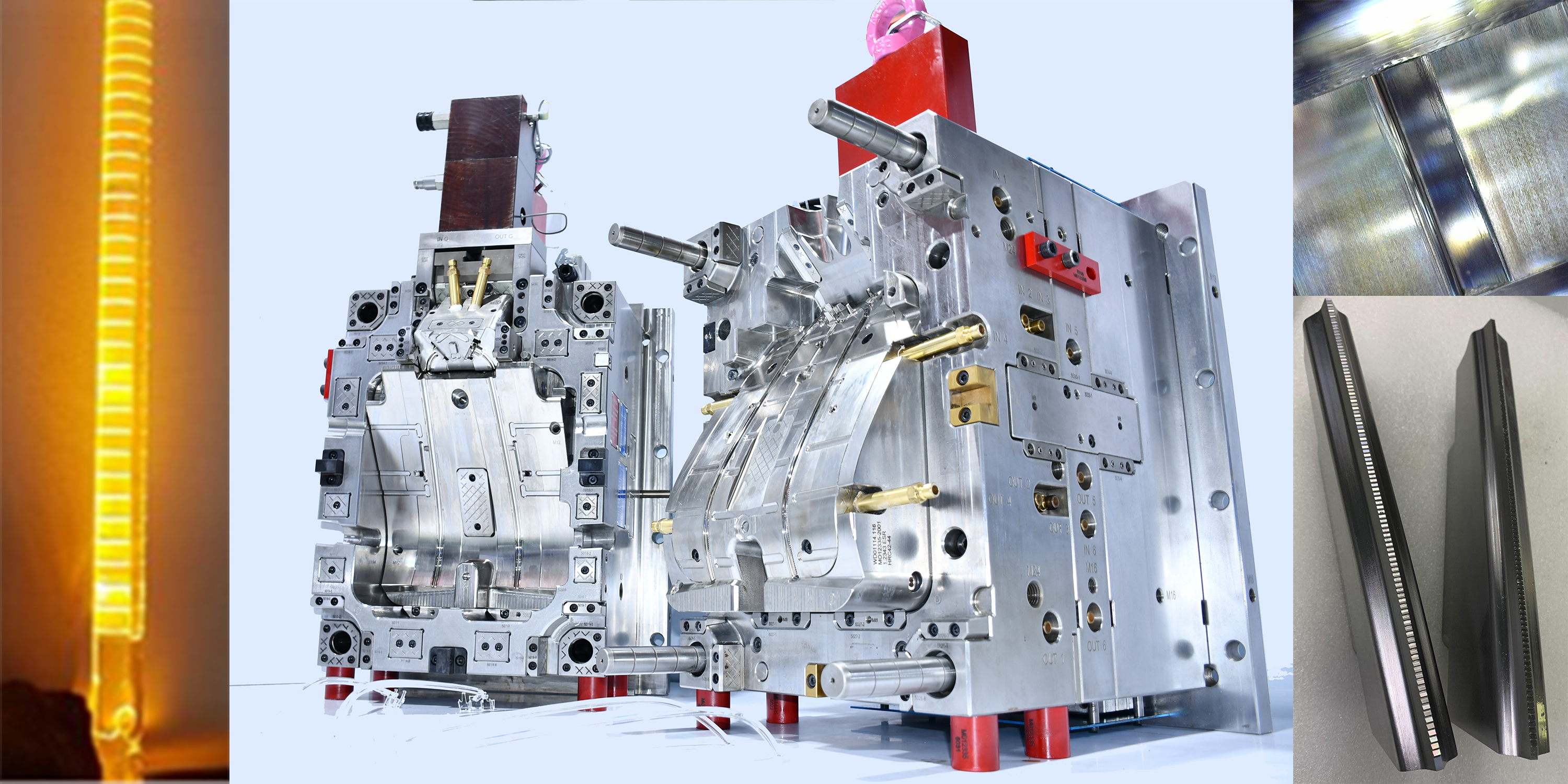

Lamps Mould
After high-speed CNC machining at 42000 revolutions per minute, the surface Ra reached 0.004-0.006, and the refraction and reflection of light reached the optimal state.
No. of Cavities:1+1
Resin Material: PMMA
Cavity & Core Steel: 1.2083(HRC48-52)
Mouldbase Steel: A/B P20,Other S50C
Injection System: Moldmaster 1 open gate to cold runner to Side gate
Building Standard: EQV DME Imperial Standard Component
